RM6000 Series Control System for Looping Embroidery Machine_刺绣机电控系统

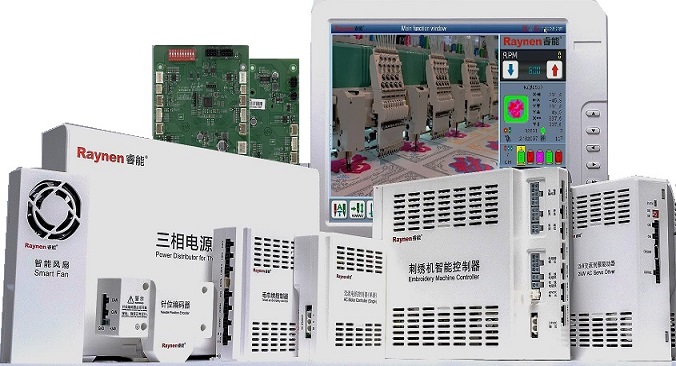

RM6000 Series control system for looping embroidery machine is a three-dimensional multi craft embroidery. The control system completes the chain-stitch/looping embroidery of various patterns via the computerized control system consisting of 6~7 axles, i.e. spindle M-shaft, frame XY-shaft, needle direction D-shaft, Looping H-shaft, tension release S-shaft and color change T-shaft. The machine with this control system could make those products of attractive & diversified pattern, strong three-dimensional effect and clear edge on garment, leather shoes, hats and other fabrics. The control system is embedded with a variety of high precision machining technologies, including: tracking and control of frame motion trajectories, synthetic display management and pre-processing of patterns, coordination control for multi-information fusion of system, optimal driving of various mechanical components, and dispatch of integrated management & control etc.

Specifications

1) Display screen: 10/15-inch touch screen
2) Control accuracy: Min controlled needle pitch 0.1 mm, range of needle code 0.1 mm ~ 12.7 mm
3) Pattern input/ output : USB, network
4) Max quantity of needles stored in the memory: 100 million; max quantity of needles for single pattern: 4 million
5) Times of color-changes: Defined by the user itself, up to 3,000 times
6) Max speed: 1,500 rpm for flat embroidery/ 1,200 rpm for looping embroidery
7) Servo variable-frequency spindle, step/ servo moving frame
8) Various combinations of drive mode can be selected for color change and trimming, etc.
9) Looping embroidery support: looping and chain-stitch embroidery
10) Special embroidery support: sequin, bead, hot drilling, cording, taping and looping embroidery , etc.
11) Supported languages include Chinese and English (optional: Italian, French, Russian, German, Spanish, Turkish, Portuguese, Arabic and Thai)
12) Cloud platform can be connected to realize the networking management for embroidery production.
